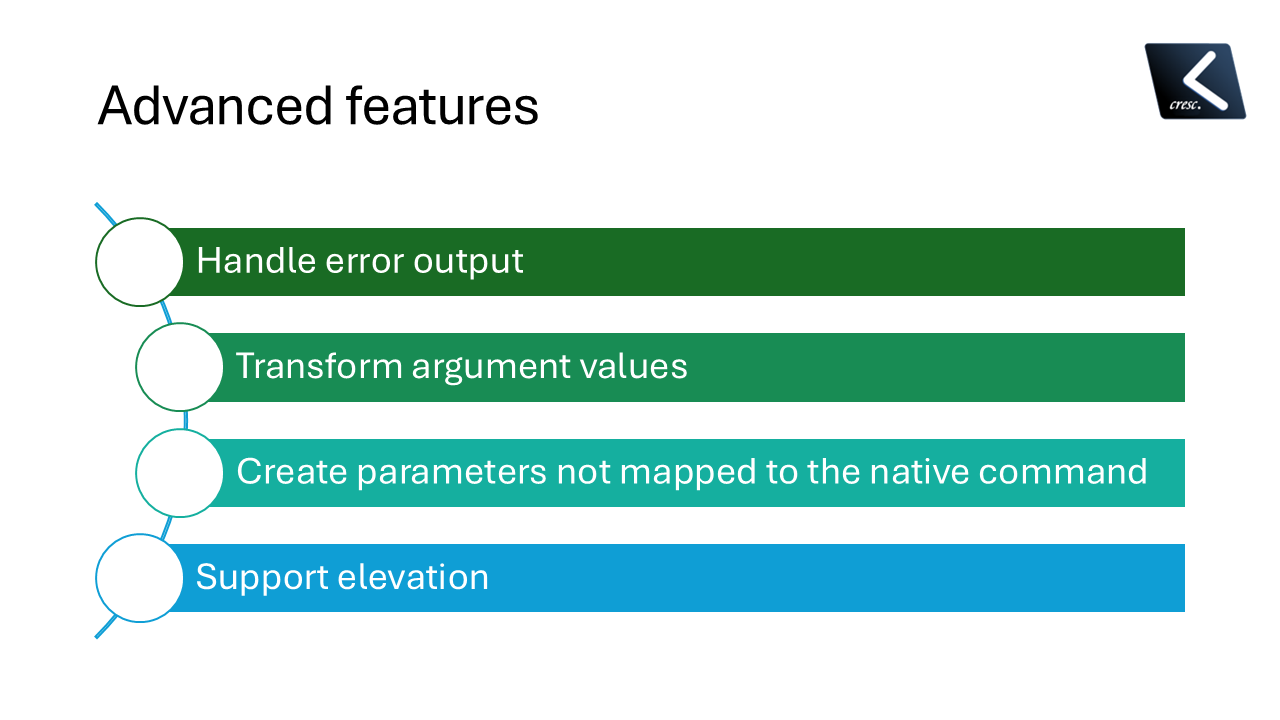

Advanced features

Handling error output

Crescendo can capture errors written to stderr by the native command. If you don’t define an output handler, Crescendo uses the default handler. The default output handler ensures that errors respect the -ErrorVariable and -ErrorAction parameters and adds the errors to $Error.

Crescendo has two internal functions to manage errors.

  • Push-CrescendoNativeError adds an error to an error queue. This function is automatically called by the output handler. You don’t have to call it directly.
  • Pop-CrescendoNativeError removes an error from the error queue. Use this function to inspect errors in the output handler.

Adding an output handler that includes Pop-CrescendoNativeError allows you to inspect errors in the output handler so you can handle them or pass them through to the caller.

The following output handler definition uses Pop-CrescendoNativeError to return errors to the user.

"OutputHandlers": [
    {
        "ParameterSetName": "Default",
        "StreamOutput": true,
        "HandlerType": "Inline",
        "Handler": "PROCESS { $_ } END { Pop-CrescendoNativeError -EmitAsError }"
    }
]

For more information, see Handling errors in Crescendo.

Argument value transformation

You may find situations where the input values handed to a Crescendo wrapped command should be translated to a different value for the underlying native command. Crescendo has argument transformation to support these scenarios. The Parameter class has two members to support argument transformation: ArgumentTransform and ArgumentTransformType. These members work like the Handler and HandlerType members. The value ArgumentTransformType can be Inline, Function, or Script. The default value for ArgumentTransformType is Inline.

  • If the ArgumentTransformType is Inline, the value of ArgumentTransform must be a string containing a scriptblock.
  • If the ArgumentTransformType is Function, the value of ArgumentTransform must be the name of a function that is loaded in the current session.
  • If the ArgumentTransformType is Script, the value of ArgumentTransform must be the path to a script file.

Crescendo passes the parameter’s argument values to the argument transformation code. The code must return the transformed values.

In this example the Crescendo configuration defines the Connect-WindowsShare cmdlet that wraps the net use command. The Credential parameter is a PSCredential object that must be converted to a username and password for the net use command.

{
    "$schema": "https://aka.ms/PowerShell/Crescendo/Schemas/2022-06",
    "Commands": [
        {
            "Verb": "Connect",
            "Noun": "WindowsShare",
            "OriginalName": "NET.exe",
            "Platform": [
                "Windows"
            ],
            "OriginalCommandElements": [ "USE" ],
            "Parameters": [
                {
                    "Name": "DriveName",
                    "OriginalName": "",
                    "DefaultValue": "*",
                    "ParameterType": "string",
                    "OriginalPosition": 0
                },
                {
                    "Name": "Share",
                    "OriginalName": "",
                    "Mandatory": true,
                    "OriginalPosition": 1,
                    "ParameterType": "string"
                },
                {
                    "Name": "Credential",
                    "OriginalName": "",
                    "ParameterType": "PSCredential",
                    "Mandatory": true,
                    "OriginalPosition": 10,
                    "ArgumentTransform": "\"/USER:$($Credential.UserName)\";$Credential.GetNetworkCredential().Password",
                    "ArgumentTransformType": "Inline"
                }
            ]
        }
    ]
}

The argument transformer converst the PSCredential object to /USER:username password for the net use command.

For more information, see Transforming arguments in Crescendo.

Creating parameters that are not used by the native command

Crescendo is designed to pass parameters defined in the configuration as arguments to the native application. There are times when you may want to use a parameter value in the output handler but not the native application. To enable this, a new boolean parameter property ExcludeAsArgument set to true prevents the argument from being sent to the native application. The default is false.

"Parameters": [
        {
            "Name": "Filter",
            "ParameterType": "string",
            "ExcludeAsArgument": true,
            "Mandatory": false,
            "Description": "Variable not sent to native app"
        }
    ],

For this example, the string argument passed to the Filter parameter is stored in the variable $Filter. This variable is available for use in your output handler. The output handler could use the value of the $Filter variable to filter the output of the native command, rather than returning all output.

Support for elevation

Native commands may require administrative elevation to perform the requested operation. The Elevation property of a Crescendo command has two properties: Command and Arguments.

  • Command: Defines the elevation mechanism to be used to elevate the native command. Crescendo includes an internal function Invoke-WindowsNativeAppWithElevation to aid with elevation on Windows. However, this doesn’t work properly for elevation. You can use sudo on Linux and macOS. And the new version of sudo for Windows or gsudo also work.
  • Arguments: This array contains te parameters to be pass to the elevation command. This can be a collection of parameters.
    • OriginalName: This is the parameter to be used with the elevation command.
    • DefaultValue: The default parameter value.

The following example show a command definition for Get-Sudoer, which returns a list of users that have sudo permission. Accessing this list requires elevation.

{
   "$schema": "https://aka.ms/PowerShell/Crescendo/Schemas/2021-11",
   "Commands": [
        {
            "Verb": "Get",
            "Noun": "Sudoer",
            "Elevation": {
                "Command": "sudo"
            },
            "OriginalName": "/bin/cat",
            "Parameters": [
                {
                    "Name": "User",
                    "Mandatory": true,
                    "OriginalName": "/etc/sudoers.d/",
                    "NoGap": true,
                    "ParameterType": "string"
                }
            ],
            "Platform": ["MacOS"]
        }
    ]
}
