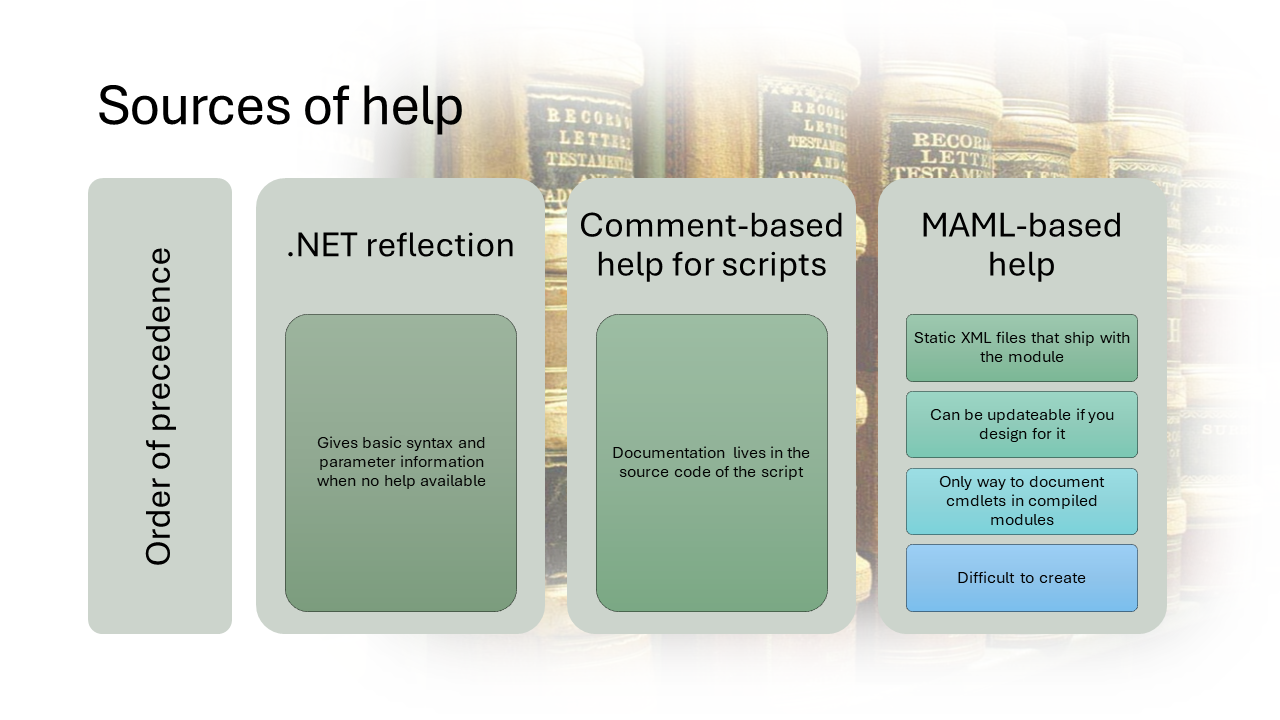

Sources of help

The PowerShell Help system is similar to man pages in Unix. It provides a way to get information about commands and concepts. PowerShell can display help content from three different sources:

  • .NET reflection
  • Comment-based help
  • MAML-based help

The sources are listed in order of precedence. Comment-based help overrides .NET reflection. MAML-based help overrides both .NET reflection and comment-based help.

.NET reflection

Using .NET Reflection, PowerShell can extract information about the command syntax, parameters, and return values for cmdlets, scripts, and functions. This is the help content displayed when no other help content is available.

Comment-based help for scripts

For functions in script-based modules and script files, PowerShell can extract help content from specially formatted comments.

For more information see about Comment Based Help.

MAML-based help

The PowerShell help system can display help content stored in XML file using the Microsoft Assistance Markup Language (MAML) schema. These XML files can be included in a module or installed and updated after the module is installed. This is the only way to provide documentation for cmdlets in a compiled module.

The MAML format is very flexible and allows you to provide detailed information and example about the commands in your module. However, constructing the XML content by hand can be tedious and error-prone.

Help object model

Regardless of the source of help, the Get-Help command returns a MamlCommandHelpInfo object that contains the help content for a command. The MamlCommandHelpInfo object has properties that correspond to the different sections of the help content, such as Synopsis, Description, Parameters, and Examples.

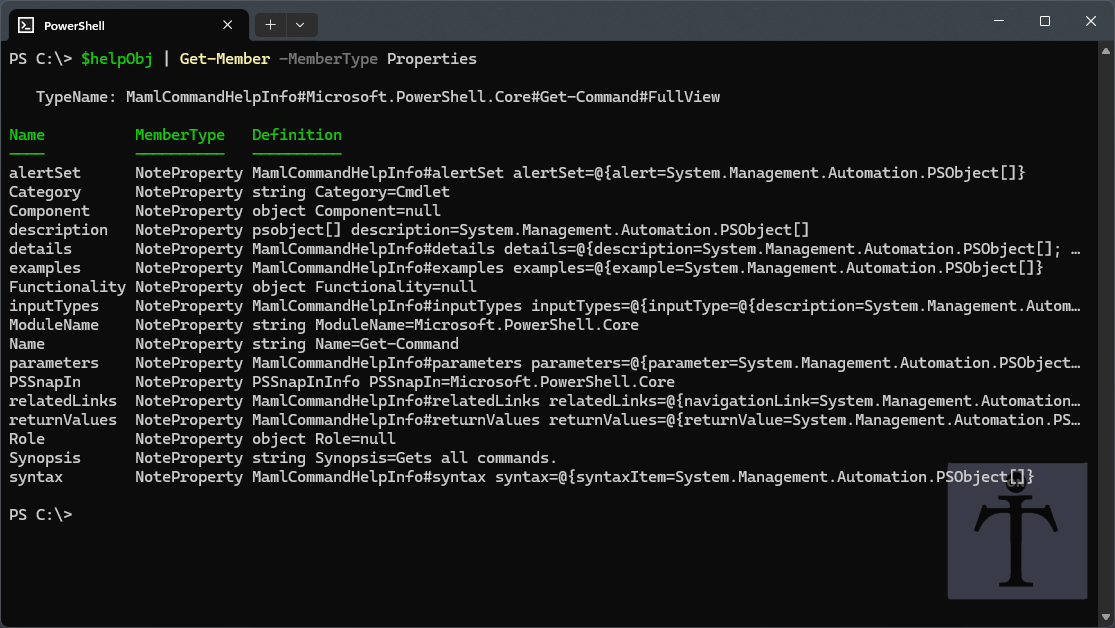

Help object model.

The PowerShell formatting system uses the properties of the MamlCommandHelpInfo object to display the help content in the console.

Limitations

The PowerShell help system has some limitations:

  • The help system doesn’t use all the features of the MAML schema. The MAML schema defines elements for formatting and other data types that are not used in the PowerShell help system.

  • The object model doesn’t accurately represent the properties of parameters and parameter sets. For example, it’s possible for a parameter to be mandatory in one parameter set and optional in another, but the MamlCommandHelpInfo object doesn’t have a way to represent this.

  • The object model for examples doesn’t allow for complex, multi-step examples.

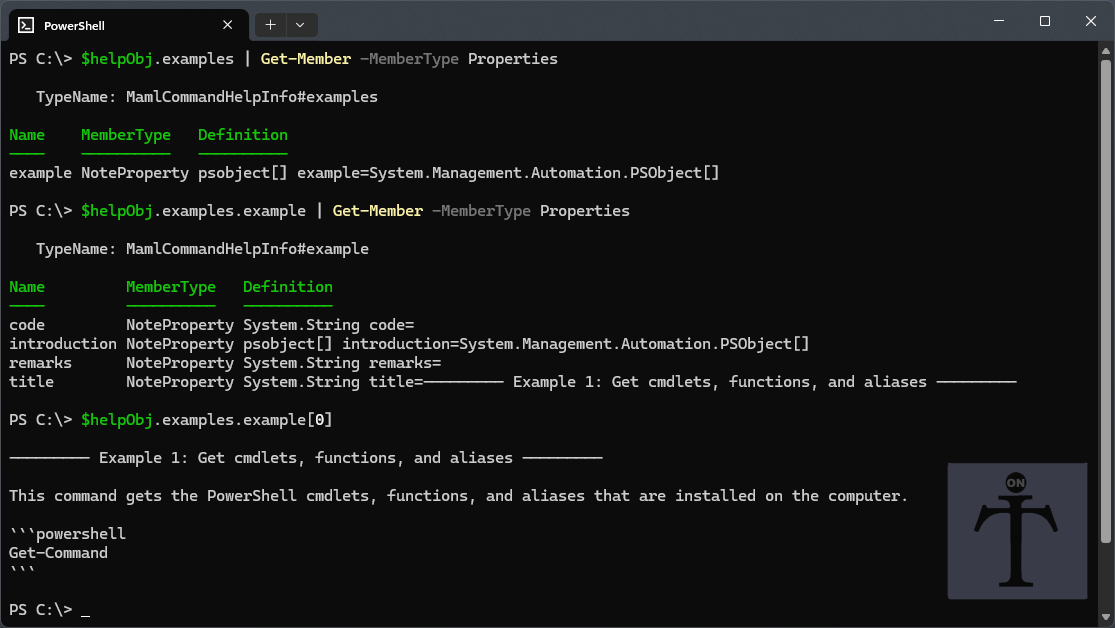

    Help object model for examples.

    The help system displays the properties of the example object in a specific order: title, introduction, code, and remarks. There is no way to interleave descriptive text between code blocks in the example. This can make it difficult to create examples that require multiple steps or that need to explain the context of the code.
